Introductions
- The TOLO-AIO (all-in-one) series steam generator revolutionizes the steam shower experience by incorporating a multitude of cutting-edge features. It seamlessly integrates iPhone and Android phone control, granting you effortless command over every aspect. Experience the swiftness of steam production and the convenience of an automatic descaling system, ensuring a seamless and hassle-free journey.
- Immerse yourself in a captivating ambiance as a soft veil of steam engulfs your senses. Choose from an enchanting array of flashing color lights to create an atmosphere that resonates with your innermost desires. Elevate your indulgence by infusing the air with your preferred fragrance, while soothing melodies embrace you in a symphony of relaxation.
- Our meticulous attention to detail is showcased in the waterproof touch-button control panel, adorned with a sleek glass surface. Discover the epitome of sophistication with a user-friendly interface featuring a screensaver and wake-up function. We strive for perfection in every aspect, delivering an unparalleled steam shower experience where excellence meets elegance.
Maintenance
- Auto washing is a feature that helps prevent the formation of water scale, ensuring optimal performance and longevity of the steam generator. However, it should not be confused with auto descaling, which is a separate process aimed at reducing existing hard water scale buildup.
- Washing or flushing involves the use of fresh water to thoroughly cleanse the tank and heating elements, effectively removing any accumulated soft water scale. On the other hand, descaling is a specialized procedure that entails introducing a descaling solution into the water tank, allowing it to soak and dissolve hard water scale deposits, and then flushing out the solution.
- *For manual descaling, certain models such as KEY and AIO are equipped with a convenient service hole on the top of the steam generator. Through this access point, a descaling solution can be applied and allowed to soak for a recommended duration of 2-3 hours. Once the descaling process is complete, the solution can be flushed out to ensure optimal performance.
How To Choose KW For Steam Generator
To accurately calculate the room volume in cubic meters (m³), you will need to multiply the length, width, and height of the room in meters. In case the room dimensions are provided in feet and inches, you can convert them to meters using the conversion factors: 1 foot = 0.3048 meter and 1 inch = 0.0254 meter.
Once you have determined the room volume in cubic meters, different multipliers are applied based on the type of material used in the steam room to calculate the required steam generator kilowatts (KW).
- For Acrylic walls, the steam generator KW is equivalent to the steam room volume (m³).
- If Ceramic Tile is used, the steam generator KW is calculated by multiplying 1.30 with the steam room volume (m³).
- In the case of All Glass tile or Glass Block Walls, the steam generator KW is obtained by multiplying 1.35 with the steam room volume (m³).
- For Porcelain tile, the steam generator KW is determined by multiplying 1.6 with the steam room volume (m³).
- Natural stone tiles* up to 1/2″ thickness require a steam generator KW equal to 2 times the steam room volume (m³).
- Natural stone slabs over 1/2″ thickness necessitate a steam generator KW equal to 2.25 times the steam room volume (m³).
If the steam room has an exterior wall, you should apply the appropriate multiplier. For a single exterior wall, multiply the steam generator KW by 1.1. For two exterior walls, multiply the steam generator KW by 1.2.
Ceiling height also factors into the steam generator KW calculation. For a 9ft. ceiling, multiply the steam generator KW by 1.15. For a 10ft. ceiling, multiply the steam generator KW by 1.3.
If your steam room includes a skylight or outside window, it is advisable to select the next largest generator. Ensure that the skylight or window is double-panel and properly sealed.
For optimal performance, it is recommended to have a ceiling height below 8 feet.
Details
* Wifi control device: iPhone /iPad / iTouch App control, search “Steamtec Sauna”
*Auto descaling pump: Choose descaling time under “4~8H”, once the steam generator is off, the solution will be pumped automatically into a water tank for soaking. When the setting time reaches, steam generator will start to drain, flushing, and then power off.It’s perfect for commercial use as you only need to make descaling setting one time, and the machine will repeat descaling every day.
*Commercial mode-fast steam: If you switch to commercial mode, water will be kept at 85℃, and steam will come out in 30 seconds after user press button, 30 mins a cycle, really energy saving especially for commercial use.
*Salt spray therapy: The generator is able to atomize salt water or medicament into tiny particulates, and mix in the air for breathing and absorbed by the skin.
*Auto aroma pump: It has temperature switch on the steam pipe, when the temperature higher than 85℃, aroma oil will be pumped into steam pipe automatically then steam will bring fragrance to everywhere of the steam room, two bottles for two smells, and perfect to use in the spa, club center.
*Service hole: There’s an after -service hole on the top of the steam generator, also can be used as another steam outlet.
*Over-heat protection: When the room temperature reaches 2°C higher than your setting, then all heating elements stop working, steam generator under heat preservation state, if water tank temperature over 115 °C, steam generator go into protection state, steam generator stop heating. When the temperature lower than 100°C, the steam generator starts to work again
*Low water level protection: When water under some certain level and the machine failed to re-fill in water automatically, the steam generator will go into a “sleep model” until water is be re-filled or steam generator turn-off.
*Sectional heating technology: Each generator has 3 groups of heating elements which provide sectional heating, from the first beginning, all 3 groups operates at maximum power and rapid heating, when the room temp is almost reached, then group 1 stop, when the required temps is achieved, then group 2 stop.The group 3 alternates on and off to maintain the room temp.
Standard Functions
| Water inlet | Auto |
| Draining | Auto |
| Flushing | Auto |
| Power off | Auto |
| Overheat protection | Yes |
| Time setting | 1~ 60min. or Continuous |
| Temperature setting | 35～60℃(95～131℉) |
Main Materials
| Housing | SS#201 |
| Water tank | SS#304 |
| Heating element | SS#316 with UL certified, can greatly reduce water scale |
What does whole set have
 |
Steam generator |
 |
Control display ,waterproof touch screen (can install both inside & outside of steam room) |
 |
Central box |
 |
3/4″ Full-bore straight auto drain valve (will not have water scale block problem) |
 |
Control cable , length 5 m (central box -> control display) |
 |
Probe cable, length 5 m (central box -> sensor end position) |
| Central cable (steam generator -> central box) | |
 |
Stainless steel#304 steam nozzle with aroma oil pocket |
 |
Safety valve, copper |
| English user guide |
Optional Functions
| Optional Functions & Equipments: Anytime to add any of below accessories is workable | ||
 |
Wifi control device | iPhone /iPad / iTouch App control (Wifi range), search “Steamtec Sauna” |
 |
Music system | Bluetooth speaker,1 pair with amplifier |
 |
Coloured lights | Light therapy (standard 6pcs/set, max. 20pcs available) |
 |
Auto aroma pump | *Aroma usage are adjustable *Two pumps for two smells *Perfect for spa,club center,etc commercial use |
 |
Auto descaling pump | *Solution come automatically and soak *Deeply clean water tank and heating elements |
 |
Exhaust fan | Dry and ventilate steam room |
 |
Commercial mode-fast steam | *Water kept at 85℃ *Steam come in 30 seconds after press button *30 mins a cycle |
 |
Salt spray generator | Salt spray therapy |
Spec
| Model | Power(KW) | Heating Elements | Voltage/Current(V/A) | Power Wire | Breaker | Room Volume | Dimension |
| (N*KW) | (N*mm²) | (A) | (m³) | (L*W*H)(mm) | |||
| TOLO-30 | 3 | 2*1.5 | 220-240/13.6 | 3*2.5 | 16 | 2～3 | 425*160*315 |
| TOLO-40 | 4 | 2*2.0 | 220-240/18.2 | 3*2.5 | 25 | 3～5 | |
| TOLO-45 | 4.5 | 3*1.5 | 220-240/20.5 | 3*2.5 | 25 | 3.5～5.5 | |
| 380-415/6.8 | 5*1.5 | 16 | |||||
| TOLO-50 | 5 | 2*1.5+1*2.0 | 220-240/22.7 | 3*4.0 | 32 | 4～6 | |
| 380-415/9.1 | 5*1.5 | 16 | |||||
| TOLO-60 | 6 | 3*2.0 | 220-240/27.3 | 3*4.0 | 40 | 5～7 | |
| 380-415/9.1 | 5*1.5 | 16 | |||||
| TOLO-70 | 7 | 2*2.5+1*2.0 | 220-240/31.8 | 3*6.0 | 40 | 5.5～8 | 475*185*450 |
| 380-415/11.4 | 5*2.5 | 16 | |||||
| TOLO-80 | 8 | 2*2.5+1*3.0 | 220-240/36.4 | 3*6.0 | 60 | 6.5～9 | |
| 380-415/13.6 | 5*2.5 | 16 | |||||
| TOLO-90 | 9 | 6*1.5 | 380-415/13.6 | 5*2.5 | 16 | 8～11 | |
| TOLO-105 | 10.5 | 3*1.5+3*2.0 | 380-415/15.9 | 5*2.5 | 25 | 9～12 | |
| TOLO-120 | 12 | 6*2.0 | 380-415/18.2 | 5*2.5 | 25 | 11～14 | |
| TOLO-150 | 15 | 6*1.5+3*2.0 | 380-415/22.7 | 5*2.5 | 32 | 13～18 | 510*185*460 |
| TOLO-180 | 18 | 9*2.0 | 380-415/27.3 | 5*4.0 | 40 | 16～22 | |
| TOLO-225 | 22.5 | 9*2.5 | 380-415/34.1 | 5*6.0 | 60 | 19～26 | |
| TOLO-240 | 24 | 6*2.5+3*3.0 | 380-415/36.4 | 5*6.0 | 60 | 22～30 |
Warranty
| Product:TOLO-AIO | Under Work With Descaling Pump | Without Maintenance |
| Controller | 2 Years | 2 Years |
| Heating Element | 2 Years | 1 Years |
| Steam Generator Boby | 5 Years | 1 Years |
| Water Level Sensor | 2 Years | 1 Years |
| Temperature Sensor | 2 Years | 1 Years |
| Control Box | 1 Years | 1 Years |
| Drain Valve | 1 Years | 1 Years |
| Fast Steam Controller | 2 Years | 2 Years |
| Wifi System | 1 Years | 1 Years |
| Music System | 1 Years | 1 Years |
| Aroma System | 1 Years | 1 Years |
| Descaling System | 1 Years | 1 Years |
| LED Light System | 1 Years | 1 Years |
| Exhaust Fan | 1 Years | 1 Years |
| Salt Generator | 1 Years | 1 Years |
https://www.tolosauna.com/wp-content/uploads/2017/12/logo.png
0
0
Tracy
https://www.tolosauna.com/wp-content/uploads/2017/12/logo.png
Tracy2022-08-26 12:27:122022-08-26 12:48:18Sauna room door
https://www.tolosauna.com/wp-content/uploads/2019/12/TOLO-Sauna-Room-495x400.jpg
400
495
Tracy
https://www.tolosauna.com/wp-content/uploads/2017/12/logo.png
Tracy2019-11-20 10:41:172023-06-01 08:58:59TOLO Sauna Room TS-02
https://www.tolosauna.com/wp-content/uploads/2019/12/TOLO-steam-room-door-black-458x344.jpg
344
458
Tracy
https://www.tolosauna.com/wp-content/uploads/2017/12/logo.png

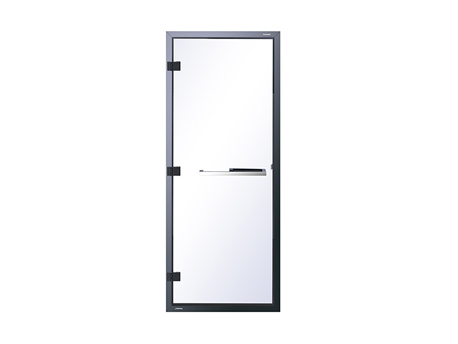

Tracy2019-01-16 03:49:082023-06-01 07:43:30TOLO Steam Room Door
